FTTH 4 Core Outdoor Fiber Termination Box

  • FTTH 4 Core Outdoor Fiber Termination Box
  • FTTH 4 Core Outdoor Fiber Termination Box
  • FTTH 4 Core Outdoor Fiber Termination Box
  • FTTH 4 Core Outdoor Fiber Termination Box

FTTH 4 Core Outdoor Fiber Termination Box

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 50 Bag/Bags
    Delivery Time: 7 Days
    Packaging: carton box
    Productivity: 1000
    Brand: Foclink
    Transportation: Ocean,Land,Air
    Place of Origin: shenzhen guangdong china
    Supply Ability: 50000
    Certificate: ISO
    HS Code: 8517622990
    Port: Shenzhen,Hongkong,Futian

Basic Info

Model No.: FT-OU-003

Product Description

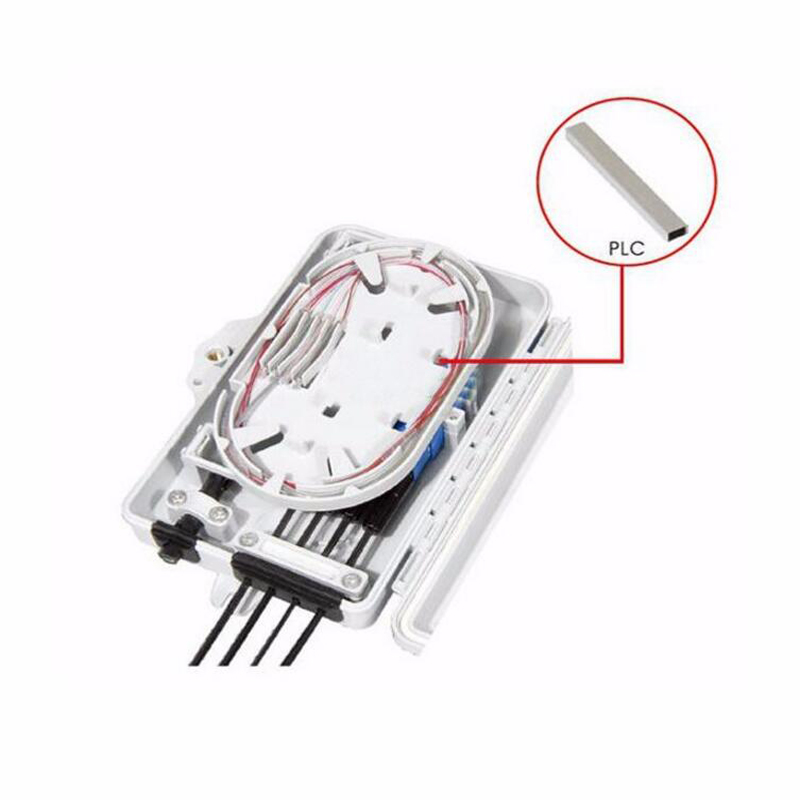

FTTH 4 Core Outdoor Fiber Termination Box

Outdoor Fiber Termination Box have function of fixed, welding functions, protection the terminal of the cable; Fiber Optic Termination box is used to implement the connection cables and pigtails. Fiber optic cable termination types with high quality electrolytic plate, the overall electrostatic spray, solid structure, beautiful appearance; It`s detachable and Suitable for ribbon and non-Ribbon Cable.


Features

1. The material is engineering plastic of high quality and it can be used for indoor,outdoor.
2. Rugged and reliable structure.
3.Indoor fiber optic termination box is applicable for wall-mounted and pole-mounted.
4. Fiber cables both can entry from the bottom of the box.
5. Supports up to 4pcs fiber optic adapter and 4 pcs fiber pigtail
6. Compliant with fast-connector and FTTH cable

7. Available to meet the cut connection function for the live cable.

Specification:

Item 4 port 6 port 8 port 12 port

24 port

Dimension(L X W X H) 265*130*40 265*130*40 265*130*40 485*200*40 mm 485*200*40 mm
Weight 0.7kg 0.7kg 0.7kg 1.5kg 1.5kg
Lateral pressure-resistance 500N 500N 500N 500N 500N
Shock-resistance 750N 750N 750N 750N 750N
Working temperature -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C
Max capacity 8 fibers 8 fibers 8 fibers 12 fibers 24 fibers

Application

Outdoor environment,IP55
Wall mount; pole mount
Comprehensive computer network engineering.
Intelligent Building Cabling
Fiber To The Home (FTTH)
Residential Intelligent Network System.

Campus Network, Enterprise


Foclink is a professional manufacturer of fiber optic equipment.
(Like fiber optic cable ,Fiber patch cord ,Fiber patch panel ,Fiber terminal box ,Fiber splitter ,fiber adapter ,fiber media converter ,EPON GPON OLT ONU etc ).

Fiber Optic Cable Termination TypesFiber Optic TerminationOutdoor Fiber Termination Box






 Foclink was established in 2005 and another factory in mainland in 2006. So,we had been working in Fiber Optic products field over 10 years and more. Now we have powerful research and development team, skillful mechanism processing professional technical support.Main products are fiber patch cord,fiber adapter,fiber splitter,optical distribution frame,fiber termination box,fiber enclosure,fiber connector,fiber patch panel,fiber media converter,ftth tools,CWDM & DWDM,etc. FOCLINK is always here for FTTH products.
